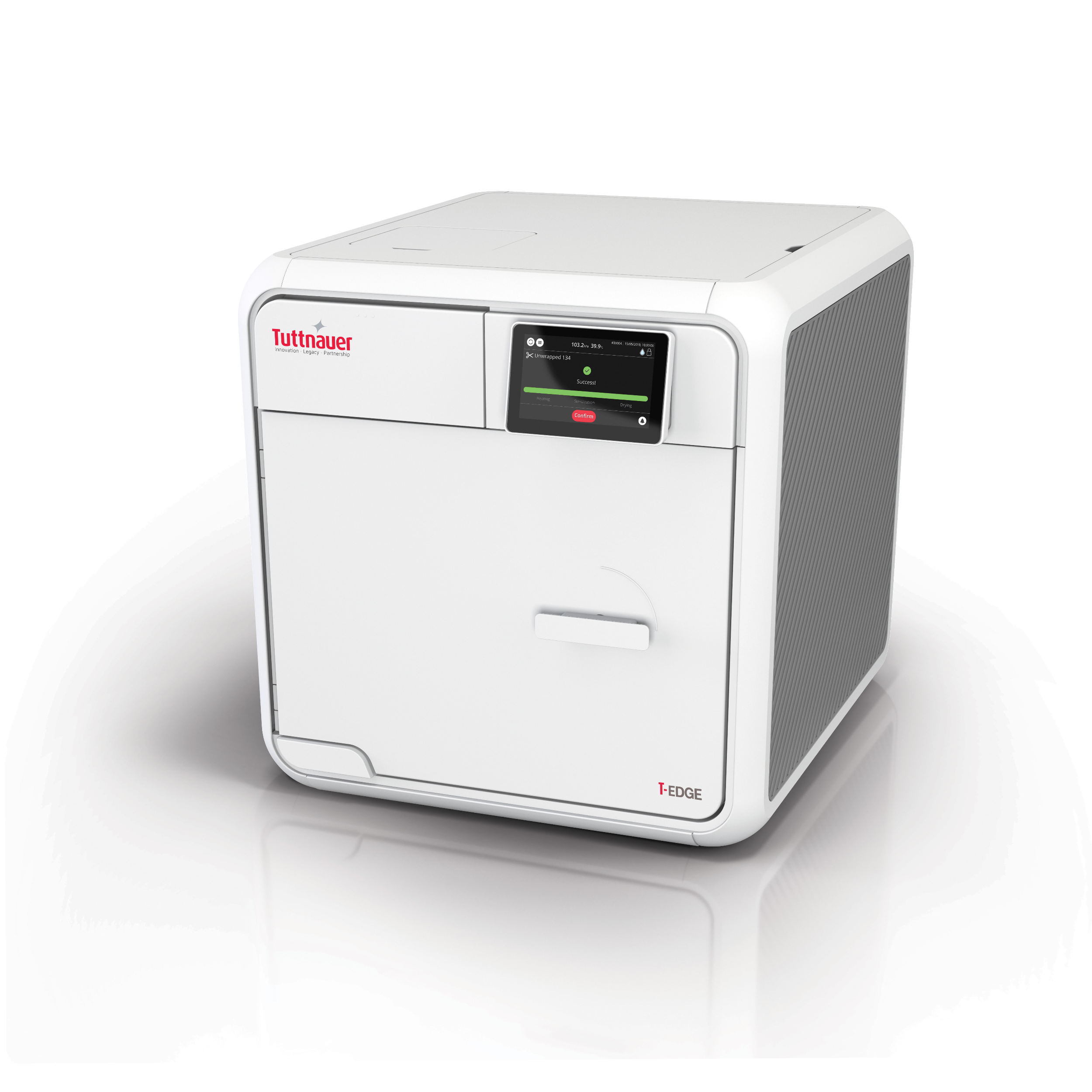

Tuttnauer T-Edge Autoclave

Fully automated autoclaves that free up your time to treat your patients.

Chamber Size

Voltage

Class

Profession

Clear

Category: Automatic Autoclaves

Description

The only Class S Gravity and Airflow Removal Autoclave upgradeable to Class B Pre/Post vacuum.
Available in 10″ or 11″ chamber, 2 Year Part & Labor Warranty. Fully automated autoclaves that free up your time to treat your patients. Perfected cycle programs for effective cycle times. The Tuttnauer T-Edge Autoclave offers fast cycle times for wrapped instruments, complete cycle, including drying. Optimal chamber capacity with more than 75% chamber capacity with 5 extra-long trays. Convenient and easy loading with door opening to 110°. User-friendly touchpad and control panel. Quickly see programs, cycles times, water levels and more. Remote Wi-Fi Monitoring via smartphone or tablet. Advanced documentation and traceability options. For safety and regulatory purposes, scan barcode data (including expiration date) for the patient file during treatment.

Chamber Dim. ø x L (mm)

T-Edge10: 250 x 460
T-Edge11: 280 x 460

Chamber Volume

T-Edge10: 23 liters
T-Edge11: 27 liters

Dimensions W x H x D (mm)

T-Edge10: 480 x 500 x 580 mm
T-Edge11: 500 x 500 x 580 mm

Tray Dimensions (W x H x D)

T-Edge10: 421 x 189 x 20.5 mm
T-Edge11: 421 x 207 x 20.5 mm

Weight

T-Edge10: 53 kg
T-Edge11: 56 kg

Power Supply

T-Edge10: 50/60Hz, 230V-1Ph+N+GND
T-Edge11: 50/60Hz, 230V-1Ph+N+GND

Number of Trays

T-Edge10: 5
T-Edge11: 5

Connections

Both models: 1 Ethernet port, 2 USB ports, WIFI, integrated automatic water filling and drain connection

Operator’s Manual
Product Brochure

Printer
Barcode Roll
Paper Roll
Pouch Rack
T-System Cleaner

Door Gasket
HEPA Filter
Drain Hose
Exhaust Filter
